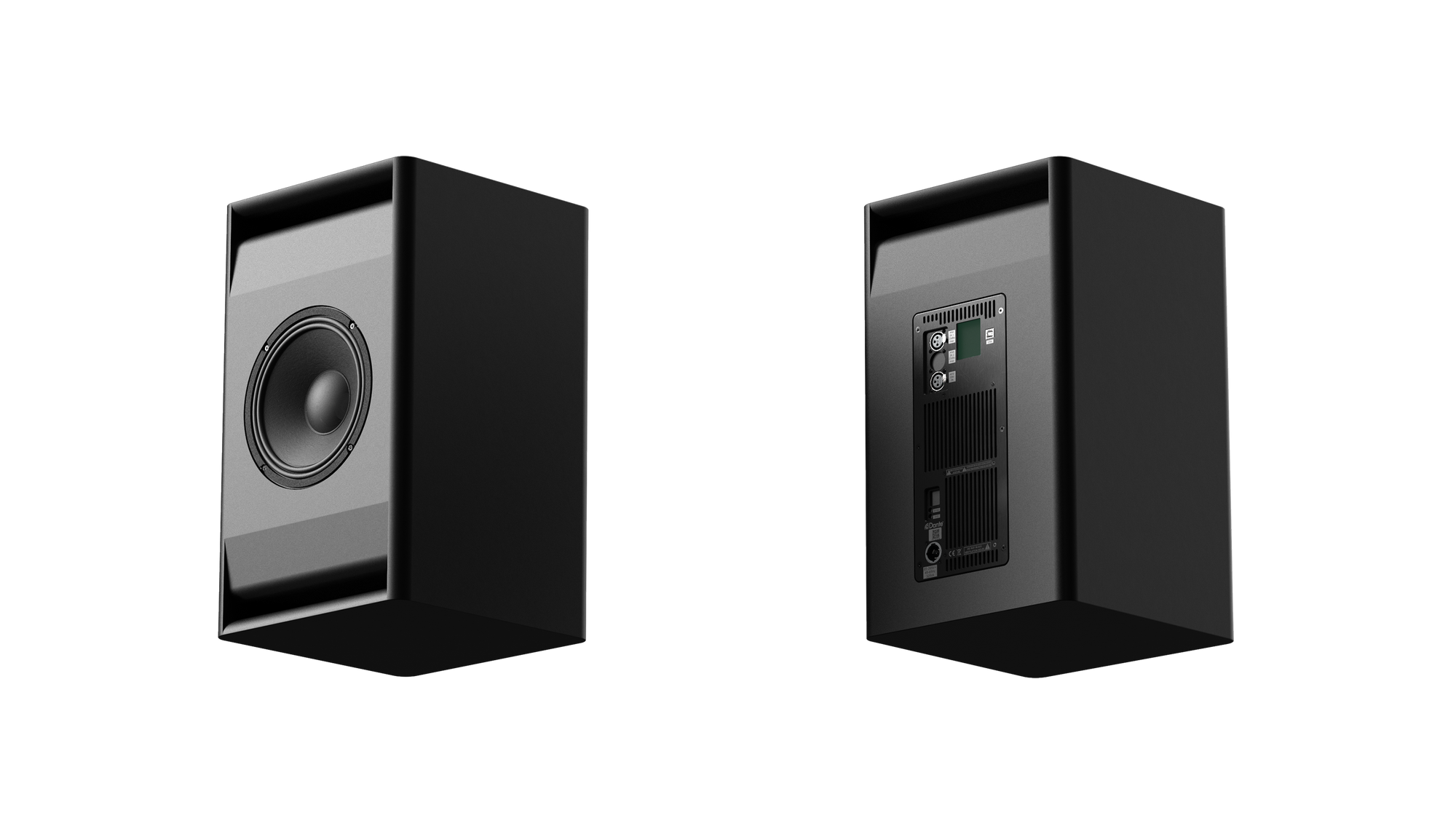

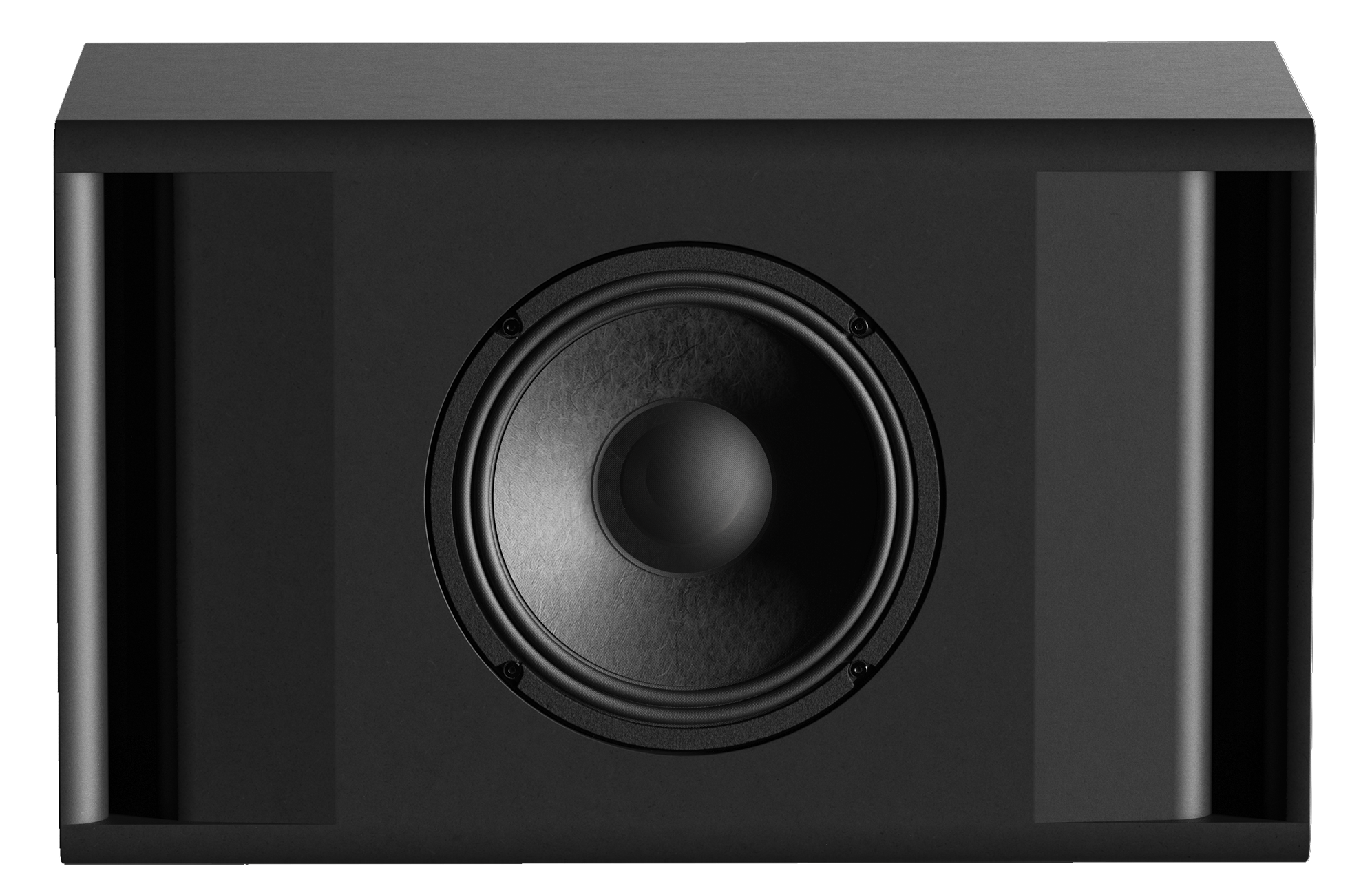

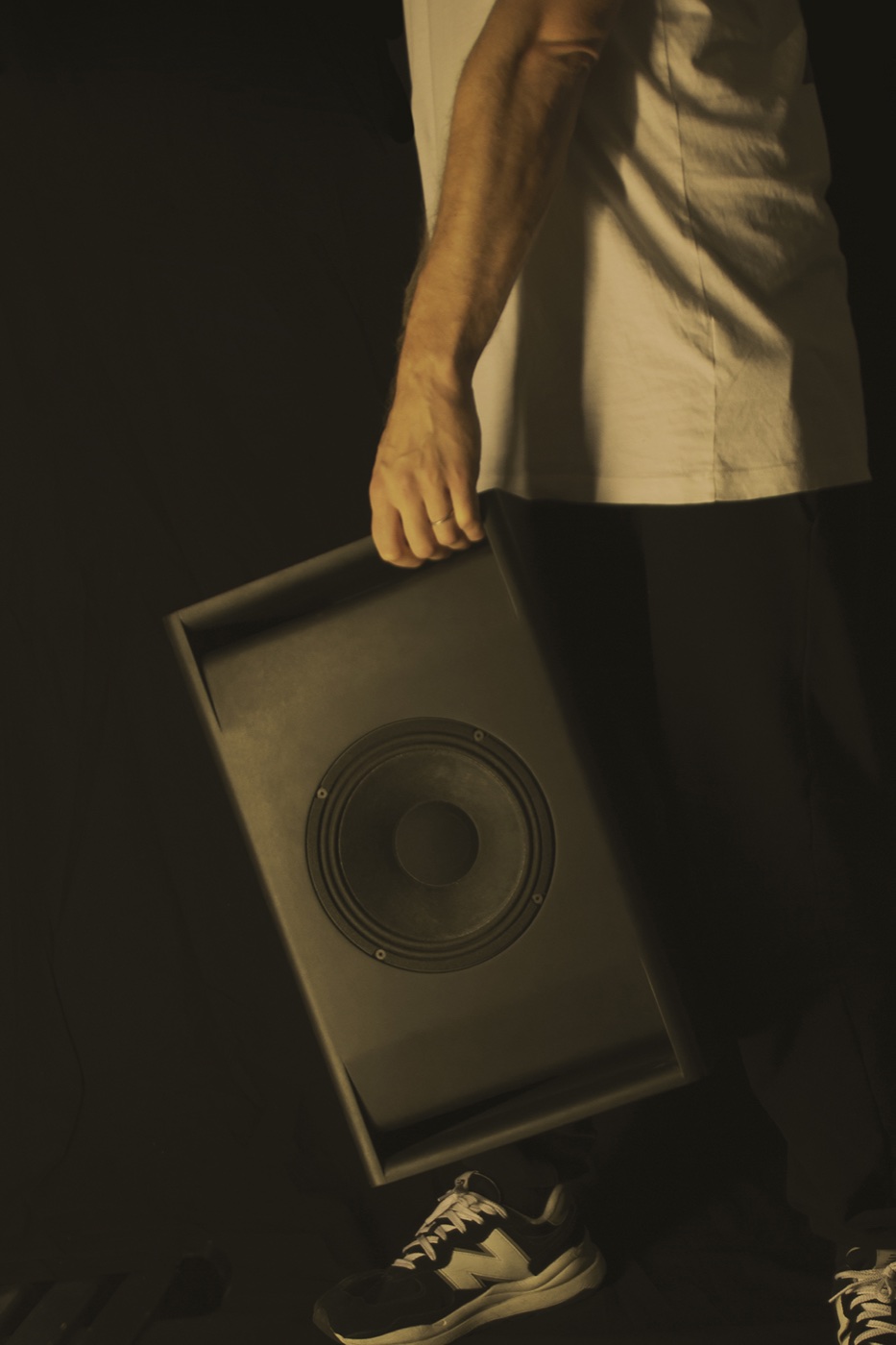

The Hoffmann Monitors CX8 is a 2-way coaxial reference loudspeaker powered by an inbuilt DSP-controlled amplifier, designed and engineered to deliver uncompromising performance. Each speaker is custom-made and assembled in Berlin, Germany.

The progressive, stripped-down design of the dualport bassreflex cabinet is the outcome of consistent optimization of the monitor’s physical and acoustic parameters.

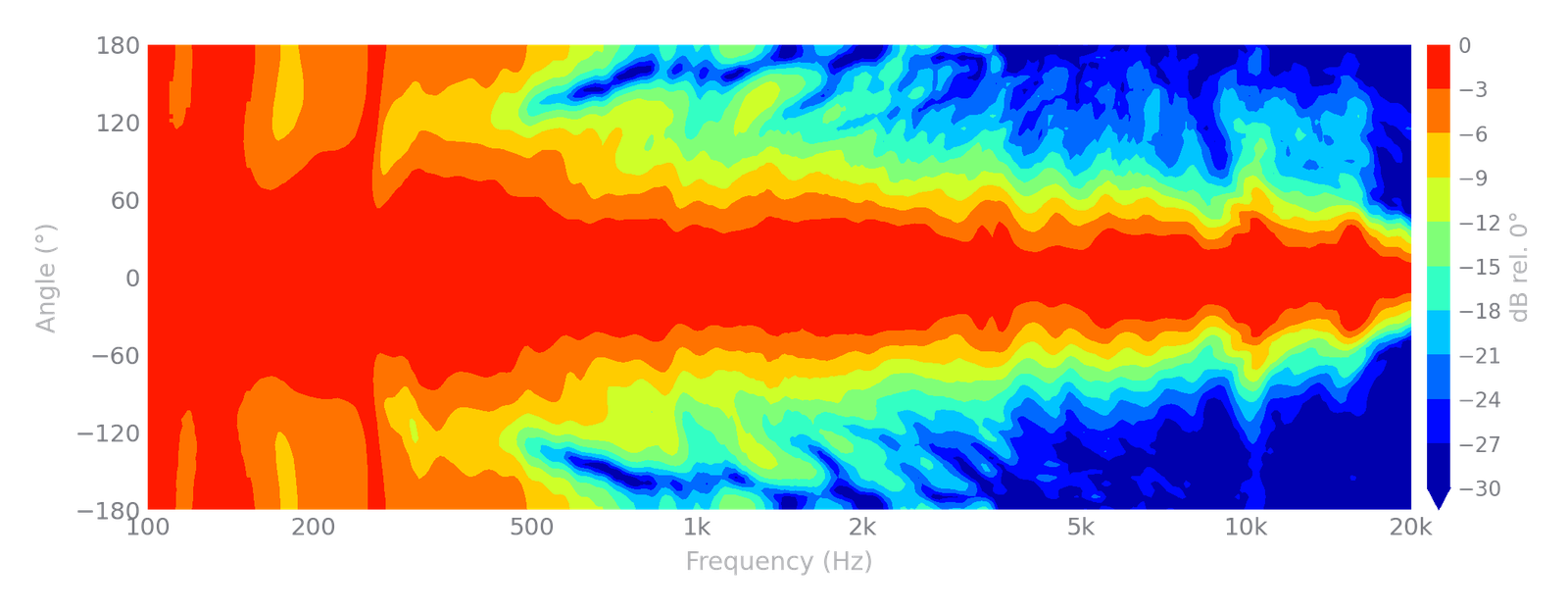

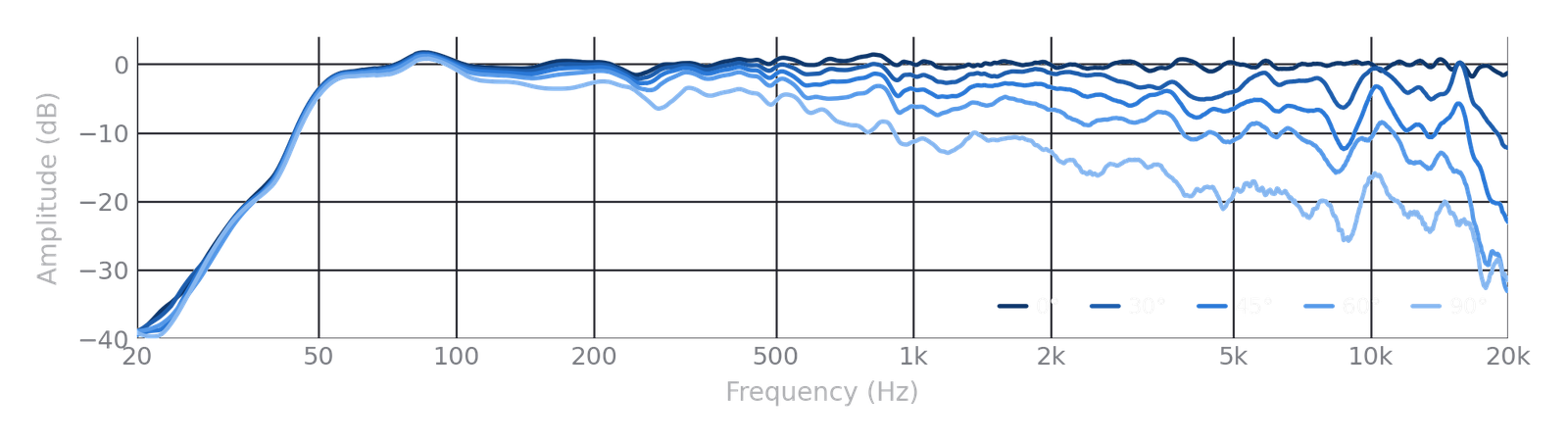

A linear phase crossover paired with the point source behavior of the coaxial driver offers a maximally flat phase and frequency-response with only a minimum of total harmonic distortion. This results in a highly precise system with an incredibly fast transient response and extremely realistic stereo image. The CX8’s symmetric layout and radial dispersion of 90° allow for both horizontal and vertical setups.

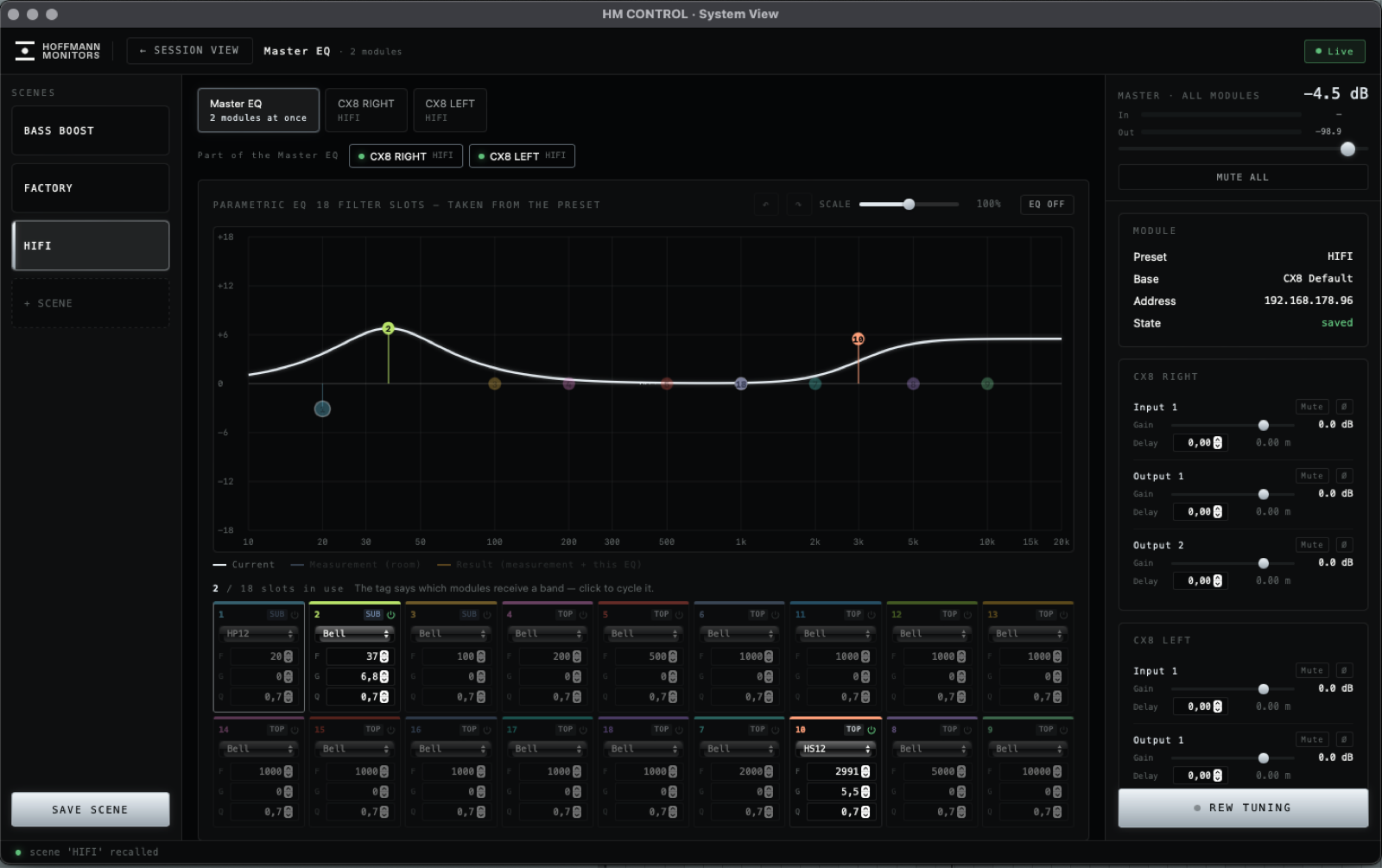

The integrated 10-band equalizer further expands the system’s versatility, making it highly adaptable to any room situation and personal preferences. EQ, preset, delay and gain operations can be adjusted using the controller app or the built-in touchscreen. With multiple inputs such as analog + digital AES/EBU over XLR as well as the optional Dante Ultimo Ethernet module, it's really easy to integrate Hoffmann Monitors into any setup.

To get even more out of the CX8, it can be completed with the SX12 subwoofer extension. Learn more about the SX12.

SPEAKER TYPE

DRIVERS

IMPEDANCE

CROSSOVERS

MAX SPL @ 1M

AMPLIFIER TYPE

AMPLIFIER POWER

MAIN INPUT VOLTAGE

DIMENSIONS

WEIGHT

CABINET MATERIAL

INPUTS

NETWORKING

CONTROLLING

PROTECTION

2-WAY COAXIAL, BASSREFLEX

LF:
8“ NEODYM CONE DRIVER

HF:
1,75“ NEODYM RING RADIATOR

LF: 8 OHM / HF: 16 OHM

IIR + FIR

104 DB >48 HZ / 117 DB >90HZ

CLASS D AMPS

LF: 500 WATT @ 4 OHM
HF: 150 WATT @ 4 OHM

110V - 230V AC, 50 - 60 HZ

H500 X W300 X D300 MM

15KG

COLORED MDF

1X ANALOG XLR
1X DIGITAL AES OVER XLR
1X DANTE ULTIOMO (OPTIONAL)

ETHERNET

APP (WIN / OSX )

THERMAL / CLIPPING LIMITERS

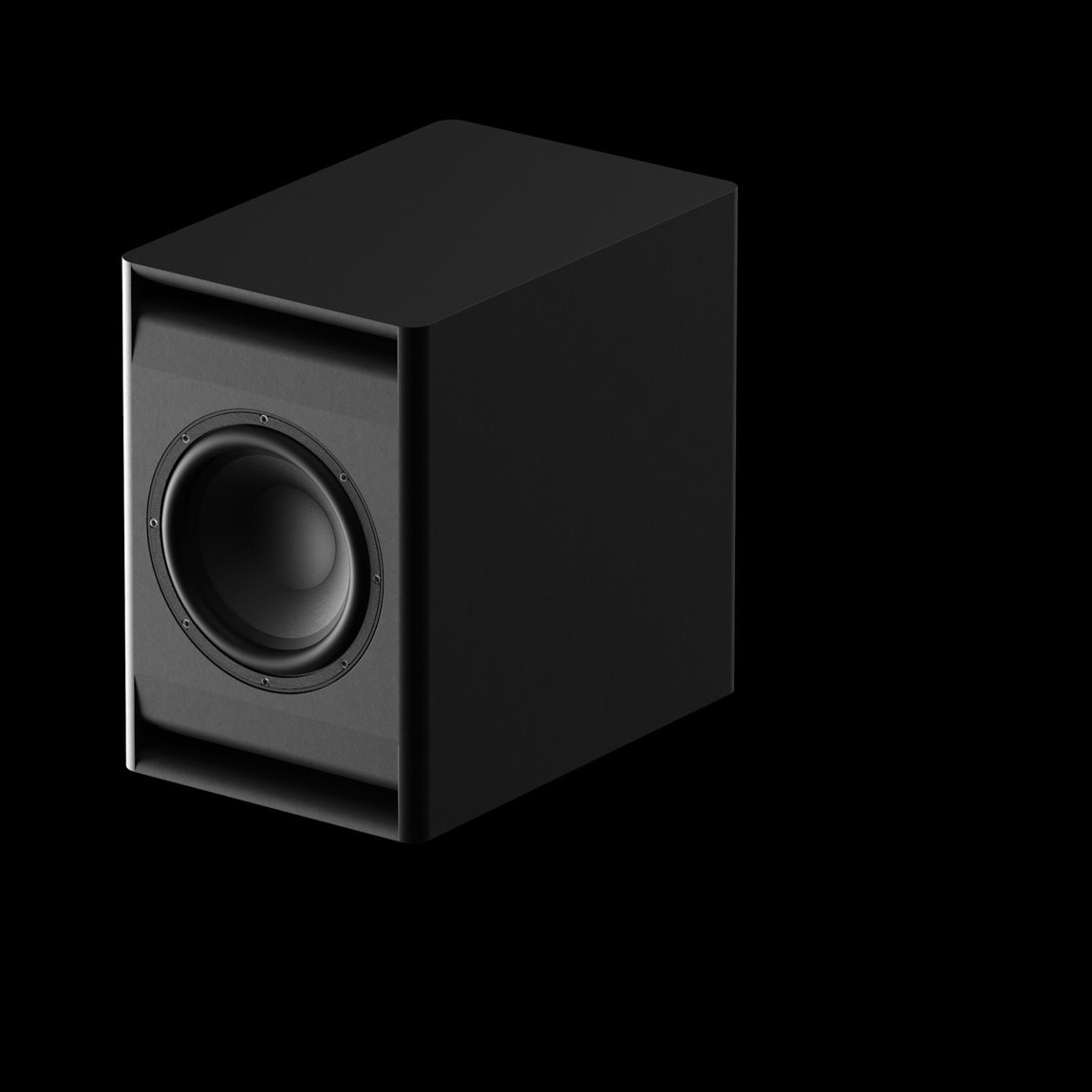

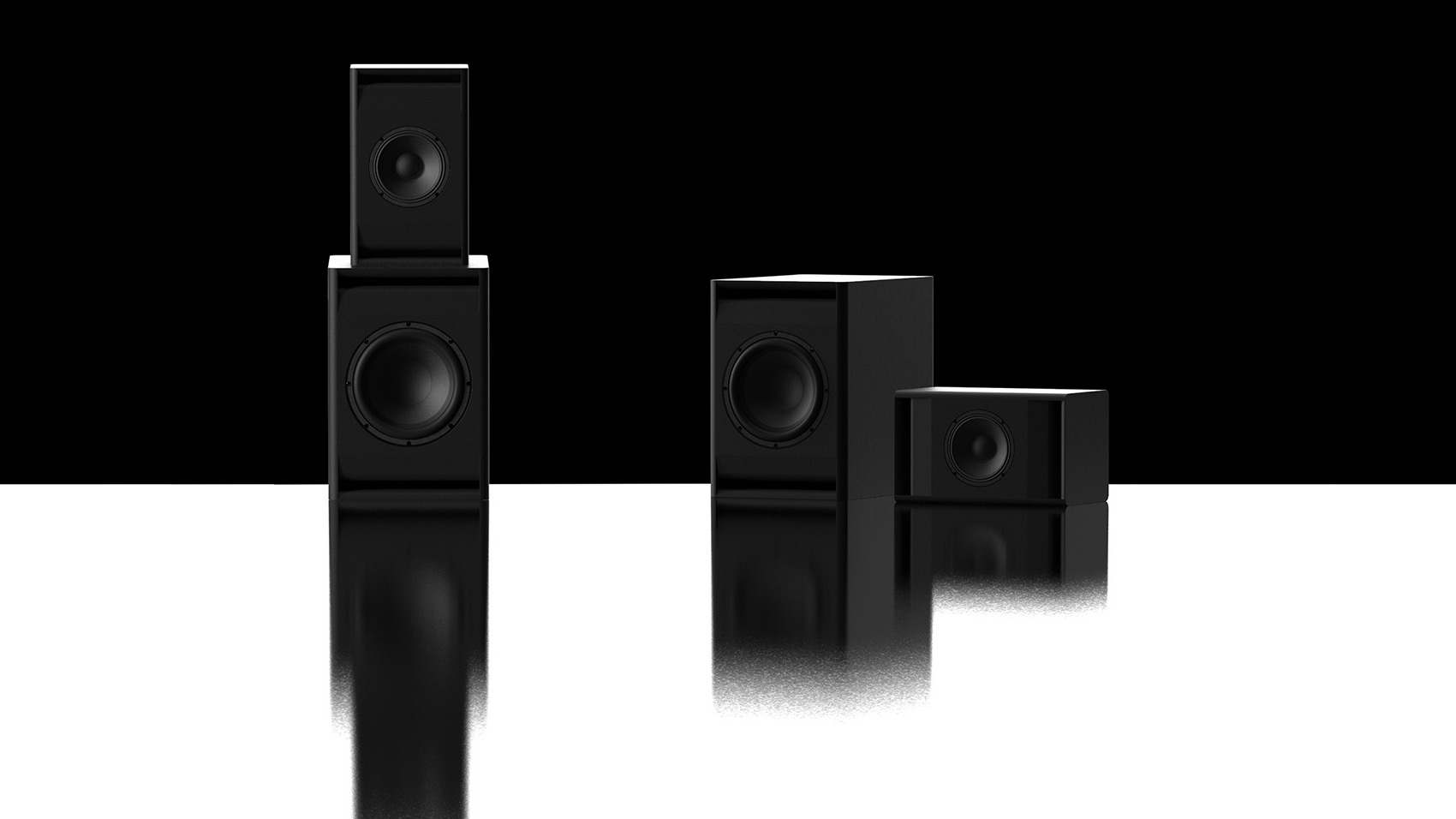

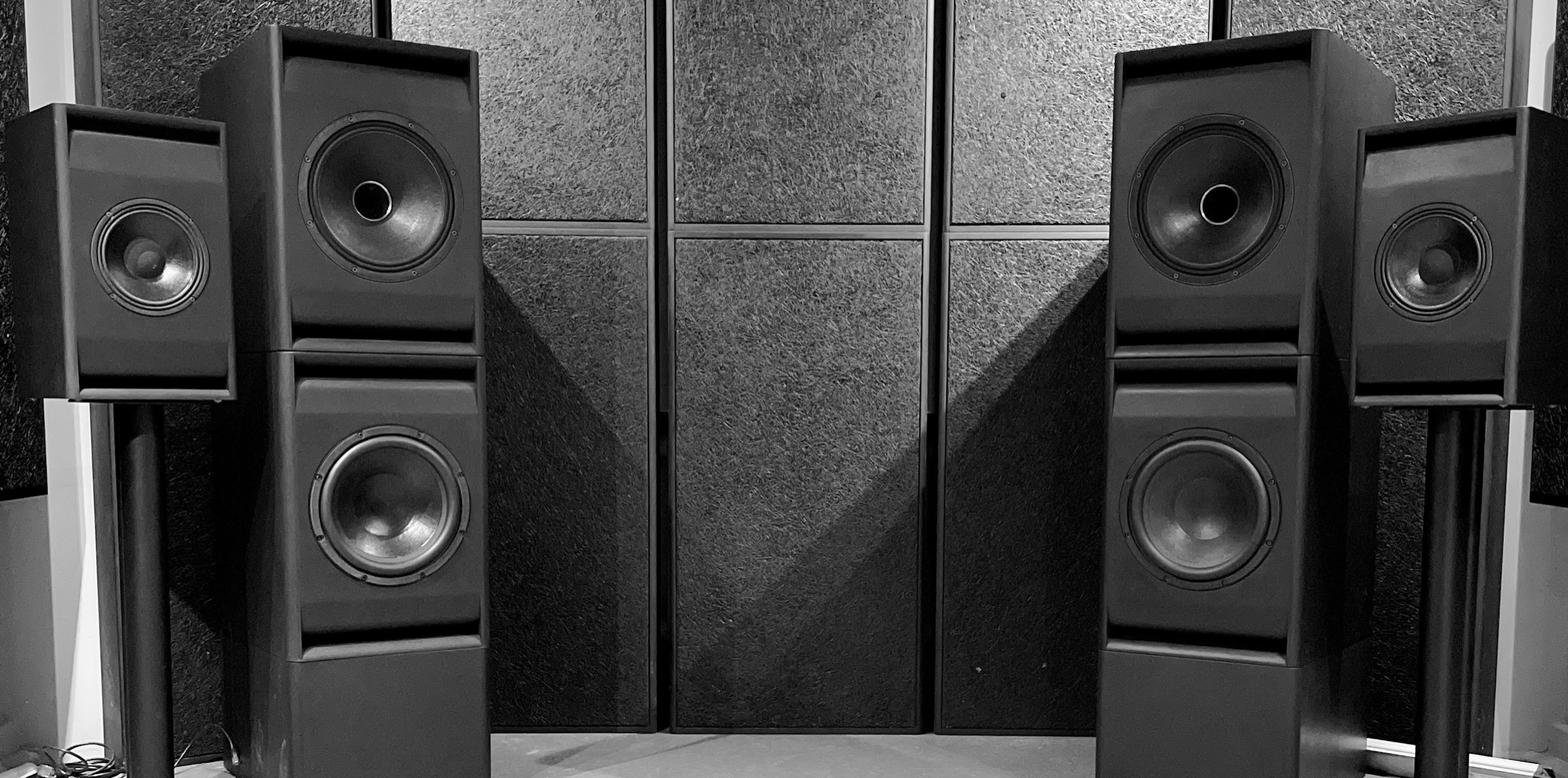

The Hoffmann Monitors SX12 Subwoofer transforms the CX8 nearfield monitors into a scalable 3-way main monitor system.

It is built upon the same design characteristics and features that make the CX8 so unique. With a 12" neodym ultra-low distortion woofer driven by a DSP-controlled amplifier, the SX12 dramatically expands the frequency response and dynamic range of the Hoffmann Monitors system.

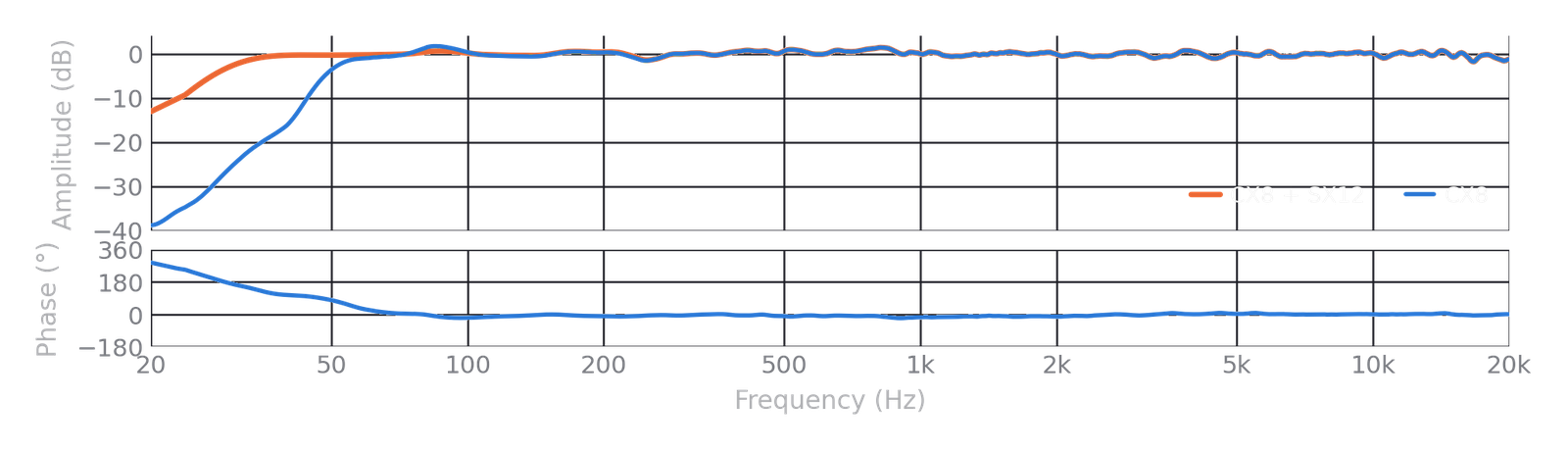

Conceived with a linear phase crossover, the SX12 matches perfectly with the CX8, resulting in an absolutely linear phase and frequency response from 28Hz upwards.

The SX12 also comes with an onboard DSP, offering EQ, preset, delay, and gain operations using our controller app or the built-in touchscreen.

SPEAKER TYPE

DRIVER

IMPEDANCE

CROSSOVERS

MAX SPL @ 1M

AMPLIFIER TYPE

AMPLIFIER POWER

MAIN INPUT VOLTAGE

DIMENSIONS

WEIGHT

CABINET MATERIAL

INPUTS

NETWORKING

CONTROLLING

PROTECTION

DUAL PORT BASSREFLEX

12“ NEODYM ULTRA LOW
DISTORTION WOOFER

8 OHM

IIR + FIR

110 DB >28 HZ / 127 DB >48HZ

CLASS D AMP

500 WATT

110V - 230V AC, 50 - 60 HZ

H590 X W408 X D610 MM

43KG

COLORED MDF

1X ANALOG XLR
1X DIGITAL AES OVER XLR
1X DANTE ULTIMO (OPTIONAL)

ETHERNET

APP (WIN / OSX )

THERMAL / CLIPPING LIMITERS

SPEAKER TYPE

DRIVER

IMPEDANCE

CROSSOVERS

MAX SPL @ 1M

AMPLIFIER TYPE

AMPLIFIER POWER

MAIN INPUT VOLTAGE

DIMENSIONS

WEIGHT

CABINET MATERIAL

INPUTS

NETWORKING

CONTROLLING

PROTECTION

DUAL PORT BASSREFLEX

12“ ULTRA LOW DISTORTION
WOOFER

8OHM

IIR + FIR

110 DB >28 HZ / 127 DB >48HZ

CLASS D PASCAL AMP,
PASSIVE COOLED

500 WATT

110V - 230V AC, 50 - 60 HZ

H590 X W408 X D610 MM

43KG

COLORED MDF

1X ANALOG XLR
1X DIGITAL AES OVER XLR
DANTE OPTIONAL

ETHERNET / USB

APP (WIN / OSX / IOS)

THERMAL / CLIPPING LIMITERS

“As a speaker geek, mastering engineer, and artist, I have always dreamed of a speaker system that truly replicates the essence of music in its purest form at all stages of production”

-Simon Hoffmann

Hoffmann Monitors was established to fulfill a dream and is dedicated to uncompromising sound and progressive design. In close collaboration with industrial design studio Geckeler Michels and renowned acoustic engineers, the first Hoffmann Monitors product line was introduced in 2020. This line consists of a versatile, scalable, high-end monitoring system featuring a unique design that delivers highly accurate and clear sound.

All products in the Hoffmann Monitors line are manufactured to the highest standards and exclusively feature professional-grade, high-end components. Each product is meticulously handcrafted and assembled to order in Berlin, Germany.

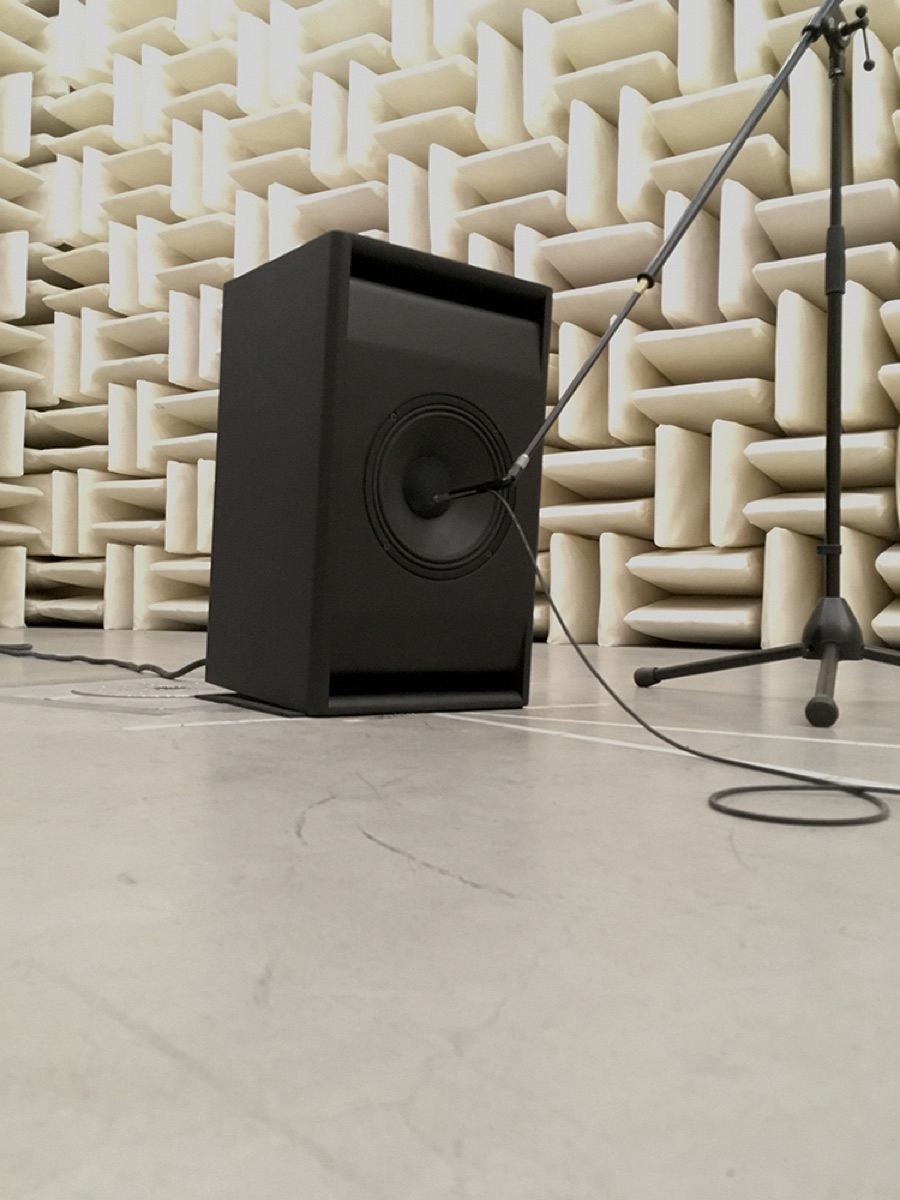

The development of the Hoffmann Monitors product line was made possible with the kind support of friends and collaborators, including ABC Dinamo (typeface), Christophe Armand (CGI, website), Geckeler Michels (design, art direction), IFAA Aachen Germany (measuring), Oliver Kunzmann (website consultancy), Manuel Odendahl (app programming, transcription), and Christopher Späth (acoustics, X-OVER design).
